Part Number: EL475CT5DHW / Vendor ID #: 4746

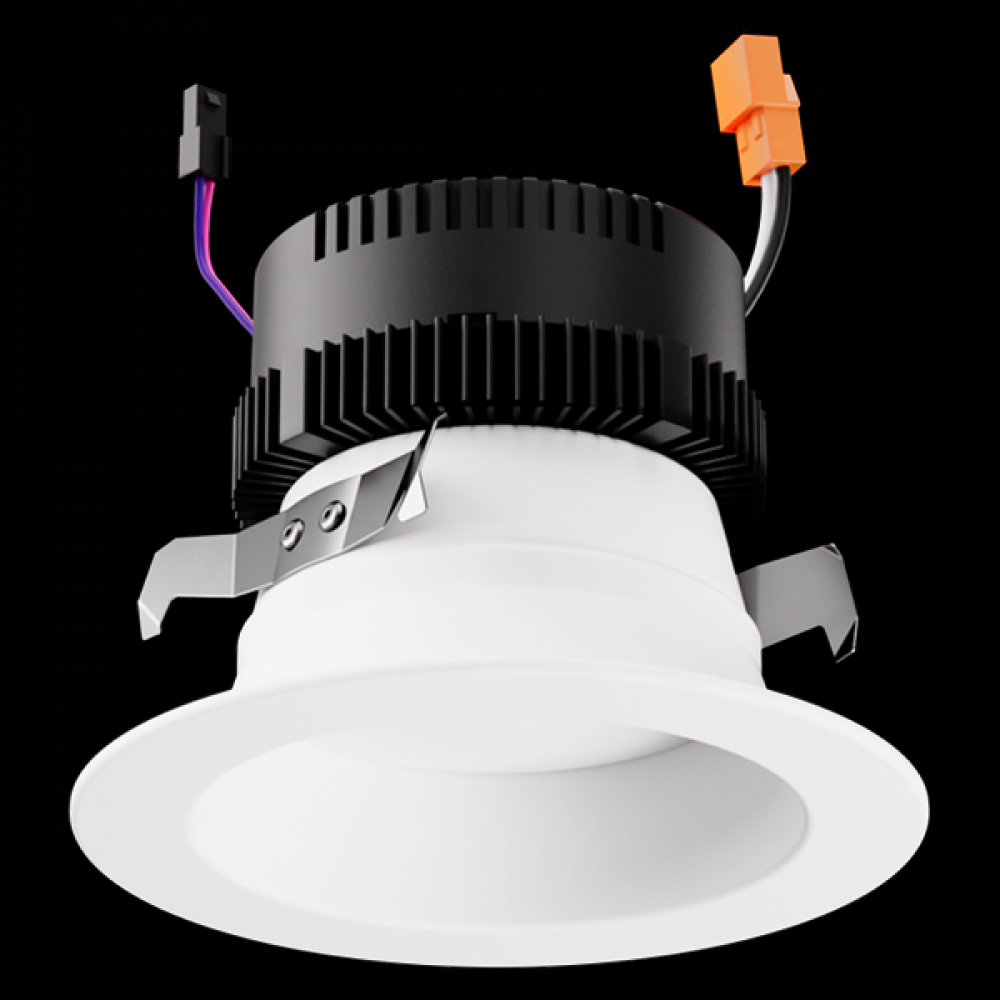

4" INSRT 0-10V 850/1000/1500LM 5CCT
by Elco Lighting
$84.78
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
  • Manufacturer availability unknown.
Dimensions
Info & Guides
Finish: Haze with White Trim
Product Overview
This unique Ply System 0-10V dimmable LED Insert gives you the options you are looking for in one fixture. Engineered with energy-efficient LED technology and with a 120/277V 0-10V dimmable driver for a budget friendly 0-10V solution. Switch to desired Color Temperature (2700K, 3000K, 3500K, 4000K or 5000K) and Lumen Output (850 lm, 1000 lm, 1500 lm) by using manual switch located on module. Designed to be used for New Construction, Remodel with ELCO Ply™ System Housings or as a retrofit with existing housings.
 Standard Information
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Trims
Finish:
White
Option:
Energy Star
Title 24
Voltage:
100-120
Lumens:
801-1100
Kelvin:
2501-3000
Wattage:
18w
Refinement Options
Finish:
Haze with White Trim
Voltage:
120 V/277 V
Bulb Hours:
50000
Bulb Type:
LED
Kelvin:
2700, 3000, 3500, 4000, 5000
Lumens / Light Output:
850, 1000, 1500
Bulb CRI:
90+
Dimmable Type:
0-10V
Energy Star:
Yes
JA8:
Yes
Title 24:
Yes
Wattage:
9.5 W, 13.5 W, 18 W
0-10V Dimmable
120/277V Driver
90+ CRI for extremely accurate color rendering
CA Title 24, ETL listed, ENERGY STAR, JA8-2016-E
Deep set LED trim reduces glare while providing even illumination
Life span of 50,000 hours L70
Lumens (Wattage): 850 lm (9.5W), 1000 lm (13.5W), 1500 lm (18W)
Manual switch to choose desired Color Temperature and Lumen Output
Patent Pending
Soft white lens provides smooth lumen distribution and eliminates LED pixelation
Manufacturer Info
Manufactured By:
Elco Lighting
