Product Overview

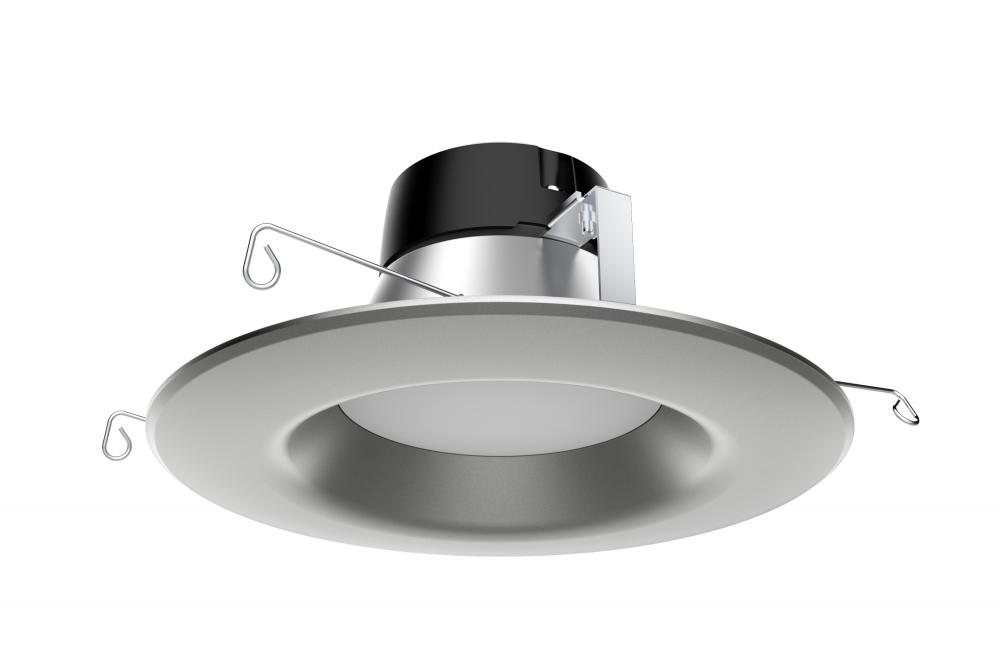

10.5 watt LED Downlight Retrofit; 5"-6"; 3000K; 120 volts; Dimmable; Brushed Nickel Finish

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Bulbs

Other Recessed Ltg.

Finish:

Nickel

Style:

Contemporary

Traditional

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Contemporary

Additional Info:

Trim material is Thermo Plastic; Trim color is Brushed Nickel

Bulb Hours:

50000

Bulb Kelvin:

Warm White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

7.41

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.42.6000

Lumens:

800L

Ship Carton Height:

8.07

Ship Carton Length:

3.94

Ship Carton Width:

9.130000000000001

Warranty:

5 Year Limited - Fixtures

Amps:

0.088A

ANSI Base:

E26 Adapter

BAA Compliant:

No

Beam Spread:

90

CA Prop-65:

Lead

Can Size:

5-6 in.

Carton Cubic Feet:

0.168

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

T20 Non-Compliant - LPW <80

CEC Terse:

Non-Compliant

CEC Web Text:

Non-Compliant

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable

Efficacy:

76.19 LPW

FCC Compliant:

Yes

Feature 1:

Warm white light

Feature 2:

Wet rated for indoor use

Feature 3:

H:3.44 D:7.41

Feature 4:

Dimmable

Feature 5:

Round, Brushed Nickel and Frosted Finish

Finish Family:

Nickel

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

65W

Indoor Outdoor:

Indoor

JA8 Compliant:

No

Lens Finish:

Frost

Lens Material:

Plastic (PS)

Long Description:

SATCO NUVO's S39745 10.5-watt, 5-6 inch LED retrofit downlight, offers warm white light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for residential and commercial applications. Illuminate homes, offices, and

Material:

Thermo Plastic (PBT)

Mounting Procedure:

Ceiling

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

0.96

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's 10.5-watt, 5-6 inch LED retrofit downlight, offers warm white light and a 90 degree beam angle. This LED downlight is an energy efficient lighting solution for residential and commercial applications. Illuminate homes, offices, and retail

Safety Listing:

cULus - Classified;cULus - Certified

SDS class:

LED_Fixture

Short Description:

10.5WLED/RDL/5-6/30K/BN/120V

Temperature (CCT):

3000K

Title 20 Compliant:

No

Title 24 Compliant:

No

Trim Color:

Brushed Nickel

Wattage Selectable:

No

Weight Lb.:

0.77

Manufacturer Info

Manufactured By:

Satco Products Inc.
