Product Overview

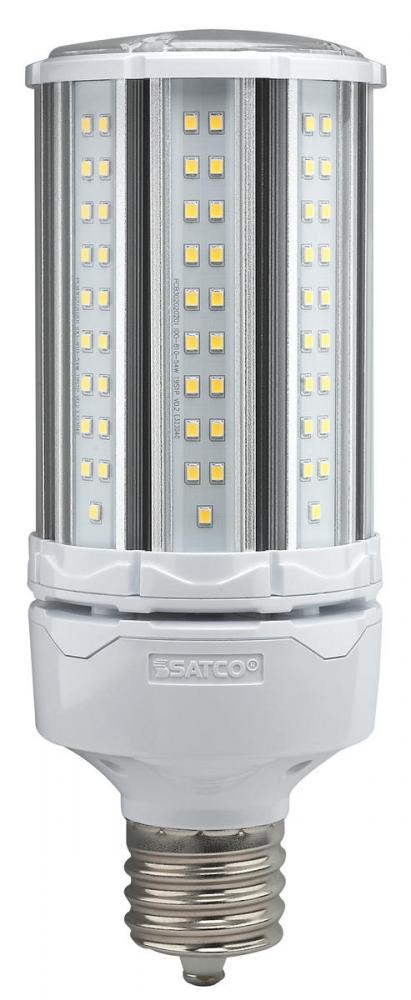

54 Watt LED HID Replacement; 2700K; Mogul extended base; 100-277 Volt

Refinement Options

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

2700K

Bulb Shape:

Corncob

Diameter:

3.34

EA Length:

4.72

Harmonized Codes:

8539.50.0091

Length:

9.029999999999999

Lumens:

7020L

Shap Carton Width:

4.72

Ship Carton Height:

10.83

Ship Weight:

2.35

Warranty:

5 Year Limited - Hi-Pro

Weight:

1.86

Additional Info:

Acceptable for use in food prep areas

BAA Compliant:

No

Beam Spread:

300

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.1396

Cartons Per Unit:

1

CCT Selectable:

No

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm White

Country Of Origin:

China

CRI:

80+

DLC Approved:

No

Efficacy:

130.00 LPW

Enclosed Fixture Use:

Yes

Enclosure Rating:

Enclosed Rated Lamp

FCC Compliant:

Yes

Flourescent Equivalent:

85W

HID Equivalent:

250W

Housing Color:

White

Incandescent Equivalent:

300W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IP Rating:

IP65

JA8 Compliant:

No

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Lens Material:

Plastic (PS)

Location Rating:

Wet

Material:

Aluminum / Plastic

Minimum Compartment Size:

Length: 15.75 in. Width: 8 in. Depth: 8 in.

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Pack Type:

Box

Power Factor:

0.9

Quantity In Pack:

1

RoHS Compliant:

Yes

SDS class:

LED_Lamp

Shatter Proof Text:

Shatter resistant materials

Short Description:

54W/LED/HID/2700K/100-277V/EX3

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

No

Wattage Selectable:

No

Watts:

54W

Manufacturer Info

Manufactured By:

Satco Products Inc.
