Part Number: NPSU-3X96W/24 / Vendor ID #: 104

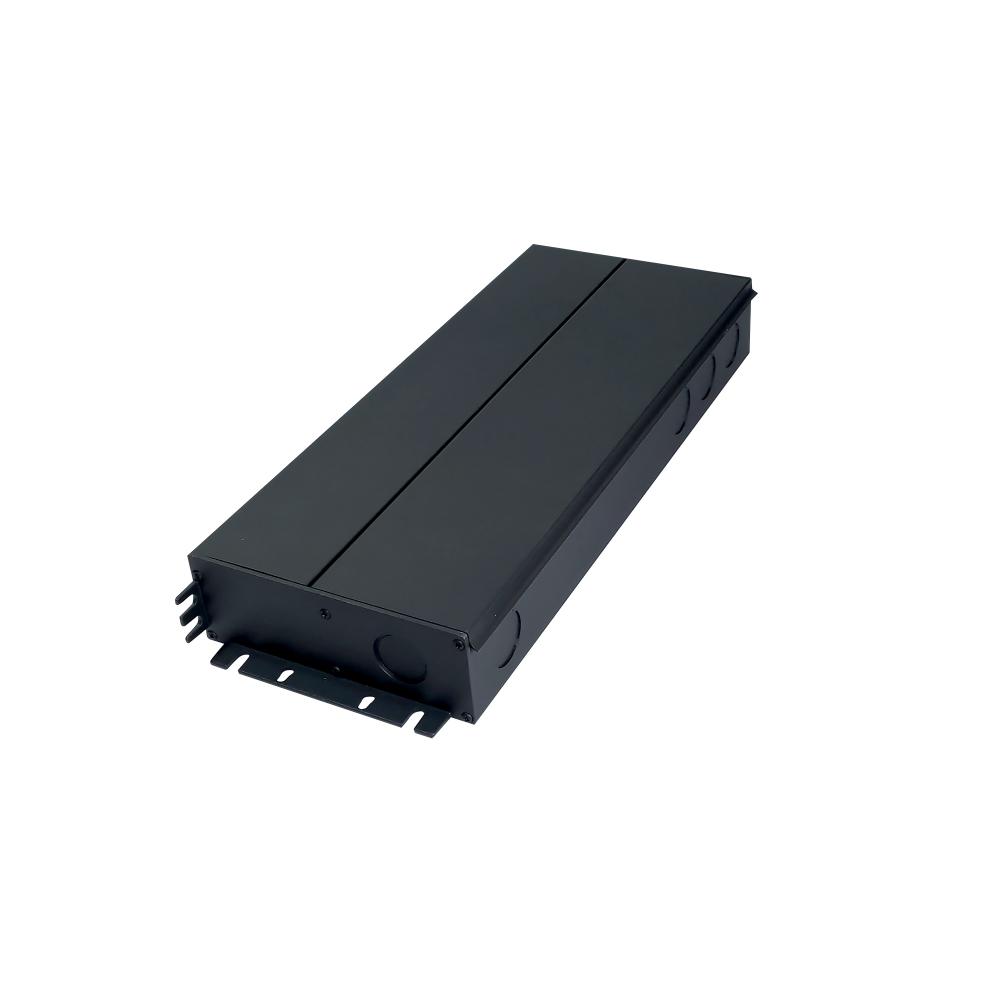

24V 288W (3 x 96W Channels) Constant Voltage Class 2 Dimmable Driver (Phase, 0-10V & PWM dimming)
by Nora
$551.90
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer has 207 items available.
Dimensions
Height: 1.65"
Width: 4.89"
Info & Guides
Length: 12.5
Wattage: 288W
Weight: 3.65
24V Constant Voltage Class 2 Dimmable LED driver can be used with Nora Lighting’s 24 Volt systems. Three channels each produce 96 watts and can be dimmed with Triac, ELV, MLV, 0-10V, or PWM dimmers. NEMA 4X enclosure is rated for wet locations and cULus listed.
Compatibility: 24V Tape Lights, 24V Josh Puck Lights, 24V LED Lightbars
Input Voltage: 110V-277V
Output Voltage: 24VDC
Wattage: 3 x 96W Class II Circuits (288W)
Dimming: Triac, ELV, MLV, 0-10V, or PWM
Knockouts: Six Knockouts
Listings: cULus Listed, NEMX 4X, Wet Location Rated
Optional Accessories:
NALTL-10: 10' Power Line Connector
NALTL-30: 30' Power Line Connector
Compatibility: 24V Tape Lights, 24V Josh Puck Lights, 24V LED Lightbars
Input Voltage: 110V-277V
Output Voltage: 24VDC
Wattage: 3 x 96W Class II Circuits (288W)
Dimming: Triac, ELV, MLV, 0-10V, or PWM
Knockouts: Six Knockouts
Listings: cULus Listed, NEMX 4X, Wet Location Rated
Optional Accessories:
NALTL-10: 10' Power Line Connector
NALTL-30: 30' Power Line Connector
Category:
Specialty Items
Subcategory:
Lighting Accessories
Category:
Driver / Transformer
Product Line:
LED3
Est. Shipping Wt.:
5
Length:
12.5
Ship Carton Height:
1.875
Ship Carton Length:
13.125
Ship Carton Width:
5.125
Weight:
3.65
Contains Battery:
N
Country of Origin:
CHN
DLC Listed:
No
Master Box H:
12
Master Box L:
14
Master Box Qty:
10
Master Box W:
11
Master Box Wt.:
38
Product Family:
24V Drivers
Safety Listing:
cULus
Wattage:
288W
3.7
Manufactured By:
Nora
